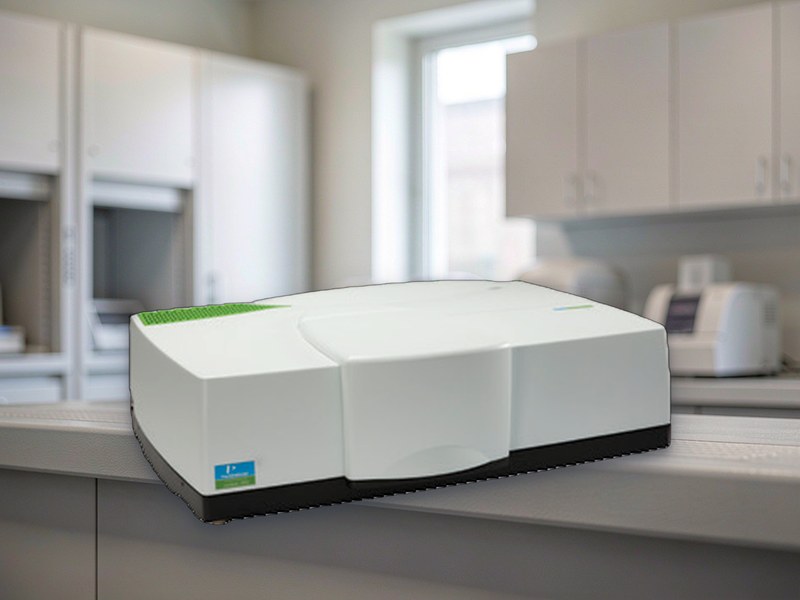

LAMBDA 750/850+/1050+ UV/Vis/NIR Spectrophotometer
Model: LAMBDA 750 / 850+ / 1050+A high-end platform for optical performance testing: the 1050+ covers 175 – 3300 nm with a double-beam, double-monochromator design, stray light down to 0.00007 %T and 8 A linearity so concentrated samples need no dilution. PMT and Peltier-cooled PbS detectors cover the whole range, and the large sample compartment accepts 100 / 150 mm integrating spheres and variable-angle reflection accessories — transmittance and reflectance of filters, coatings, glass and PV films in one pass.
Specifications
| Wavelength range | 175 – 3300 nm (1050+); 175 – 900 nm (850+) |
|---|---|
| Resolution | UV/Vis better than 0.05 nm, NIR better than 0.2 nm |
| Wavelength accuracy | UV/Vis ±0.08 nm, NIR ±0.3 nm |
| Wavelength reproducibility | UV/Vis better than 0.005 nm, NIR better than 0.02 nm |
| Optical system | Double beam, double monochromator, holographic gratings |
| Detectors | Photomultiplier tube (PMT) + Peltier-cooled PbS |
| Stray light | 0.00007 %T (220 / 340 / 370 nm, ASTM E-387) |
| Linearity | 8 A |
| Spectral bandwidth | UV/Vis 0.01 – 5 nm continuously variable; NIR 0.04 – 20 nm |
| Light sources | Pre-aligned deuterium (UV) + tungsten-halogen (Vis/NIR), automatic switching |
| Sampling accessories | 100 / 150 mm integrating sphere, universal reflectance, variable-angle transmission / specular reflectance |
| Software | UV WinLab, 21 CFR Part 11 compliant |
Features
- 175 – 3300 nm in one instrument: UV, visible and near-IR without changing platforms
- Double beam with double monochromator: stray light down to 0.00007 %T for high-absorbance samples
- 8 A linearity means concentrated solutions go straight in, no dilution errors or lost time
- PMT plus Peltier-cooled PbS detectors keep signal-to-noise high across the whole spectral range
- UV/Vis bandwidth continuously variable from 0.01 nm — narrow peaks and weak signals both handled
- Large compartment takes 100 / 150 mm integrating spheres and universal reflectance accessories for solids, films and powders
- Variable-angle transmission and specular reflectance (0 – 90°, 0.01° steps) in a single mounting
- Purpose-built for optical metrology: transmittance, reflectance, band gap and haze for optics, coatings, displays and PV
Applications
- Optical components and coatings: transmittance and reflectance of filters, lenses and coated glass
- Photovoltaics and semiconductors: thin-film band gap, anti-reflection layers, wafer coatings
- Displays and architectural glass: colour, haze, visible transmittance, low-E coatings
- Advanced materials: absorption and diffuse reflectance of films, powders and nanomaterials
- Metrology and QA: calibration of reference filters, cuvettes and optical artefacts
- Universities and institutes: optical characterisation platform for materials, chemistry and physics
