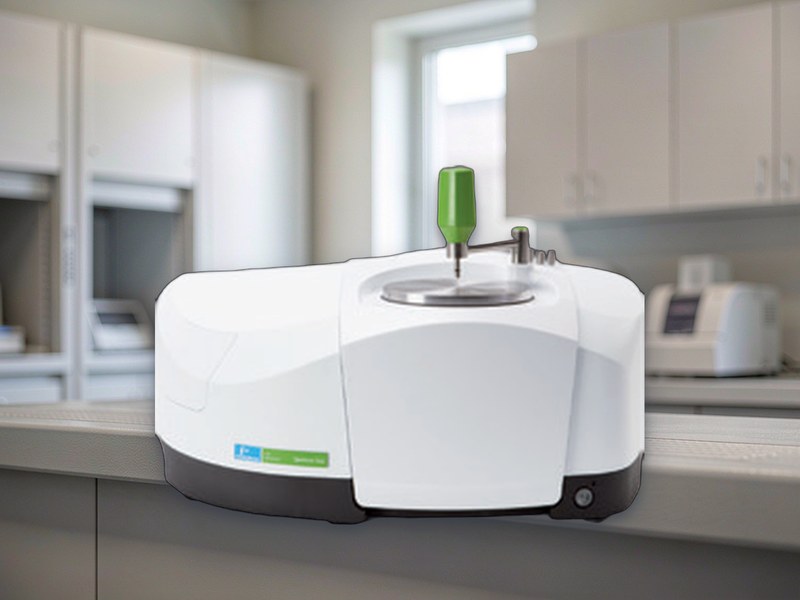

Spectrum Two FT-IR Spectrometer
Model: Spectrum TwoA benchtop FT-IR for everyday analysis: 8300 – 350 cm⁻¹ covers mid-IR and extends into near-IR, with resolution better than 0.5 cm⁻¹ and an integrated universal sampling compartment that takes ATR accessories plug-and-play. The Dynascan interferometer needs no alignment and OpticsGuard protects the optics from humidity, so the 13 kg unit works on the bench and on site.
Specifications
| Spectral range | 8300 – 350 cm⁻¹ (KBr beamsplitter) |
|---|---|
| Resolution | better than 0.5 cm⁻¹ |
| Signal-to-noise | 14500:1 (DTGS detector, 5 s, peak-to-peak) |
| Wavenumber accuracy | better than 0.01 cm⁻¹ at 2000 cm⁻¹ |
| Detector | Room-temperature LiTaO₃ (standard) / thermostatted DTGS (optional) |
| Beamsplitter | Multilayer-coated wide-range KBr |
| Interferometer | Dynascan self-compensating, no dynamic alignment |
| Moisture protection | OpticsGuard optical protection with long-life desiccant |
| Atmospheric compensation | AVC real-time compensation, water and CO₂ removed automatically |
| Interfaces | USB / Ethernet TCP, wired and wireless |
| Dimensions | 450 × 300 × 210 mm, 13 kg |
Features
- 8300 – 350 cm⁻¹ covers the full mid-IR and extends into near-IR for organics, inorganics and polymers
- Dynascan self-compensating interferometer with alignment-free optics: switch on and measure
- OpticsGuard humidity barrier and long-life desiccant keep it reliable in humid labs and on site
- AVC atmospheric compensation removes water vapour and CO₂ in real time, no subtraction artefacts
- Integrated universal sampling compartment: ATR, transmission and DRIFTS accessories plug straight in
- 450 × 300 × 210 mm and 13 kg — bench-top when needed, portable when fieldwork calls
- USB and Ethernet (including wireless) for remote control and diagnostics
- Couples with Spotlight FT-IR microscopes and TGA analysers for a scalable platform
Applications
- Materials: polymer identification, blend compatibility, ageing products and fillers
- Pharmaceuticals: raw material and excipient ID, packaging compatibility, batch consistency
- Food and agriculture: honey adulteration, milk powder fillers, edible oil fraud
- Environment: microplastic screening, soil organic matter, airborne particulate composition
- Chemicals: reaction monitoring, grade confirmation, incoming goods verification
- Teaching and research: IR spectroscopy courses and routine characterisation
